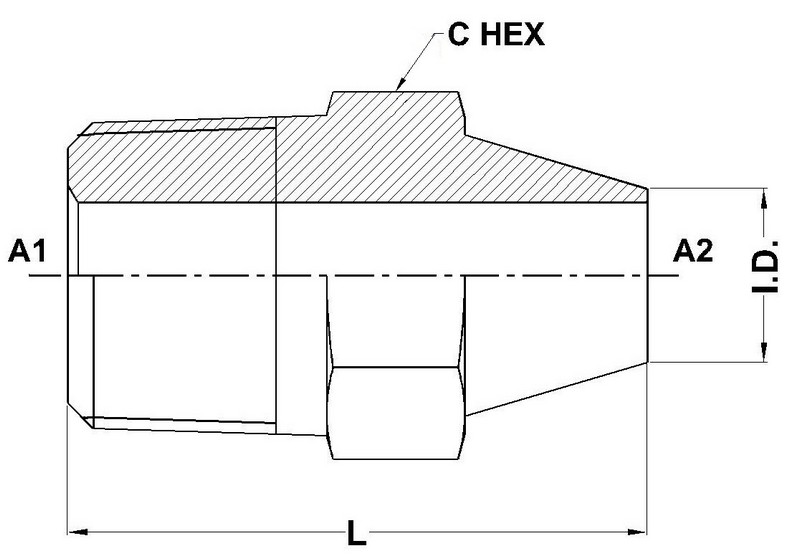

| PART NO.SIZE | PIPE O.D. | A1 NPTF | A2 WELD-ON | I.D. | L LGTH | C HEX |
|---|---|---|---|---|---|---|
| 5316-04 | 1/4 | 1/4-18 | 1/4 | 0.250 | 1.197 | 0.562 |
| 5316-06 | 3/8 | 3/8-18 | 3/8 | 0.375 | 1.250 | 0.687 |
| 5316-08 | 1/2 | 1/2-14 | 1/2 | 0.500 | 1.438 | 0.875 |
| 5316-12 | 3/4 | 3/4-14 | 3/4 | 0.750 | 1.500 | 1.062 |
| 5316-16 | 1 | 1-11 1/2 | 1 | 1.000 | 1.700 | 1.312 |
