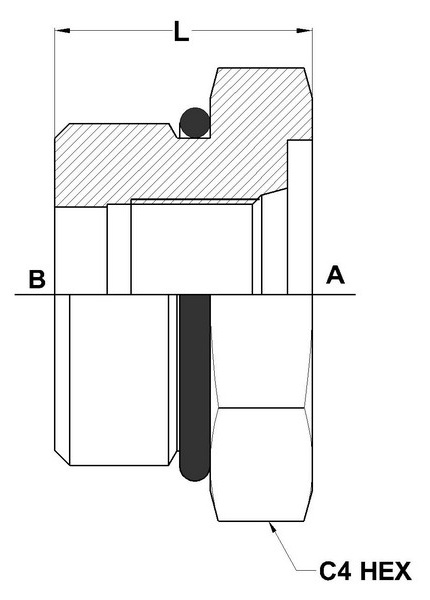

| PART NO.SIZE | B SAE ORB | A SAE ORB | B DRILL | L LGTH | C4 HEX |
|---|---|---|---|---|---|
| 6410-02-04-O | 5/16-24 | 7/16-20 | 0.062 | 1.13 | 0.688 |
| 6410-03-04-O | 3/8-24 | 7/16-20 | 0.125 | 1.13 | 0.688 |
| 6410-04-02-O | 7/16-20 | 5/16-24 | 0.172 | 1.08 | 0.562 |
| 6410-04-04-O | 7/16-20 | 7/16-20 | 0.172 | 1.08 | 0.688 |
| 6410-04-05-O | 7/16-20 | 1/2-20 | 0.172 | 1.24 | 0.750 |
| 6410-04-06-O | 7/16-20 | 9/16-18 | 0.172 | 1.24 | 0.812 |
| 6410-04-08-O | 7/16-20 | 3/4-16 | 0.172 | 1.35 | 1.062 |
| 6410-05-04-O | 1/2-20 | 7/16-20 | 0.234 | 1.08 | 0.688 |
| 6410-05-06-O | 1/2-20 | 9/16-18 | 0.234 | 1.24 | 0.812 |
| 6410-06-04-O | 9/16-18 | 7/16-20 | 0.297 | 1.12 | 0.688 |
| 6410-06-06-O | 9/16-18 | 9/16-18 | 0.297 | 1.16 | 0.812 |
| 6410-06-08-O | 9/16-18 | 3/4-16 | 0.297 | 1.38 | 1.062 |
| 6410-06-10-O | 9/16-18 | 7/8-14 | 0.297 | 1.48 | 1.125 |
| 6410-08-03-O | 3/4-16 | 3/8-24 | 0.391 | 0.85 | 0.875 |
| 6410-08-04-O | 3/4-16 | 7/16-20 | 0.391 | 1.16 | 0.875 |
| 6410-08-05-O | 3/4-16 | 1/2-20 | 0.391 | 1.21 | 0.875 |
| 6410-08-06-O | 3/4-16 | 9/16-18 | 0.391 | 1.21 | 0.875 |
| 6410-08-08-O | 3/4-16 | 3/4-16 | 0.391 | 1.47 | 1.062 |
| 6410-08-10-O | 3/4-16 | 7/8-14 | 0.391 | 1.56 | 1.125 |
| 6410-08-12-O | 3/4-16 | 1-1/16-12 | 0.391 | 1.73 | 1.375 |
| 6410-10-04-O | 7/8-14 | 7/16-20 | 0.484 | 0.91 | 1.000 |
| 6410-10-05-O | 7/8-14 | 1/2-20 | 0.484 | 1.27 | 1.000 |
| 6410-10-06-O | 7/8-14 | 9/16-18 | 0.484 | 1.27 | 1.000 |
| 6410-10-08-O | 7/8-14 | 3/4-16 | 0.484 | 1.38 | 1.062 |
| 6410-10-12-O | 7/8-14 | 1-1/16-12 | 0.484 | 1.79 | 1.375 |
| 6410-10-16-O | 7/8-14 | 1-5/16-12 | 0.484 | 1.79 | 1.625 |
| 6410-12-04-O | 1-1/16-12 | 7/16-20 | 0.609 | 1.00 | 1.250 |
| 6410-12-06-O | 1-1/16-12 | 9/16-18 | 0.609 | 1.00 | 1.250 |
| 6410-12-08-O | 1-1/16-12 | 3/4-16 | 0.609 | 1.48 | 1.250 |
| 6410-12-10-O | 1-1/16-12 | 7/8-14 | 0.609 | 1.57 | 1.250 |
| 6410-12-12-O | 1-1/16-12 | 1-1/16-12 | 0.609 | 1.73 | 1.375 |
| 6410-12-14-O | 1-1/16-12 | 1-3/16-12 | 0.609 | 1.88 | 1.625 |
| 6410-12-16-O | 1-1/16-12 | 1-5/16-12 | 0.609 | 1.88 | 1.625 |
| 6410-12-20-O | 1-1/16-12 | 1-5/8-12 | 0.609 | 1.94 | 2.125 |
| 6410-14-08-O | 1-3/16-12 | 3/4-16 | 0.719 | 1.48 | 1.375 |
| 6410-14-10-O | 1-3/16-12 | 7/8-14 | 0.719 | 1.57 | 1.375 |
| 6410-14-12-O | 1-3/16-12 | 1-1/16-12 | 0.719 | 1.73 | 1.375 |
| 6410-14-16-O | 1-3/16-12 | 1-5/16-12 | 0.719 | 1.88 | 1.625 |
| 6410-16-04-O | 1-5/16-12 | 7/16-20 | 0.844 | 1.00 | 1.500 |
| 6410-16-06-O | 1-5/16-12 | 9/16-18 | 0.844 | 1.00 | 1.500 |
| 6410-16-08-O | 1-5/16-12 | 3/4-16 | 0.844 | 1.00 | 1.500 |
| 6410-16-10-O | 1-5/16-12 | 7/8-14 | 0.844 | 1.57 | 1.500 |
| 6410-16-12-O | 1-5/16-12 | 1-1/16-12 | 0.844 | 1.73 | 1.500 |
| 6410-16-14-O | 1-5/16-12 | 1-3/16-12 | 0.844 | 1.73 | 1.625 |
| 6410-16-16-O | 1-5/16-12 | 1-5/16-12 | 0.844 | 1.73 | 1.625 |
| 6410-16-20-O | 1-5/16-12 | 1-5/8-12 | 0.844 | 1.97 | 2.125 |
| 6410-16-24-O | 1-5/16-12 | 1-7/8-12 | 0.844 | 1.98 | 2.500 |
| 6410-20-06-O | 1-5/8-12 | 9/16-18 | 1.078 | 1.00 | 1.875 |
| 6410-20-08-O | 1-5/8-12 | 3/4-16 | 1.078 | 1.00 | 1.875 |
| 6410-20-10-O | 1-5/8-12 | 7/8-14 | 1.078 | 1.00 | 1.875 |
| 6410-20-12-O | 1-5/8-12 | 1-1/16-12 | 1.078 | 1.00 | 1.875 |
| 6410-20-16-O | 1-5/8-12 | 1-5/16-12 | 1.078 | 1.73 | 1.875 |
| 6410-20-24-O | 1-5/8-12 | 1-7/8-12 | 1.078 | 1.98 | 2.500 |
| 6410-24-06-O | 1-7/8-12 | 9/16-18 | 1.312 | 1.00 | 2.125 |
| 6410-24-12-O | 1-7/8-12 | 1-1/16-12 | 1.312 | 1.00 | 2.125 |
| 6410-24-16-O | 1-7/8-12 | 1-5/16-12 | 1.312 | 1.73 | 2.125 |
| 6410-24-20-O | 1-7/8-12 | 1-5/8-12 | 1.312 | 1.79 | 2.125 |
| 6410-24-24-O | 1-7/8-12 | 1-7/8-12 | 1.312 | 1.98 | 2.500 |
| 6410-32-12-O | 2-1/2-12 | 1-1/16-12 | 1.781 | 1.00 | 2.750 |
| 6410-32-16-O | 2-1/2-12 | 1-5/16-12 | 1.781 | 1.00 | 2.750 |
| 6410-32-20-O | 2-1/2-12 | 1-5/8-12 | 1.781 | 1.00 | 2.750 |
| 6410-32-24-O | 2-1/2-12 | 1-7/8-12 | 1.781 | 1.80 | 2.750 |
