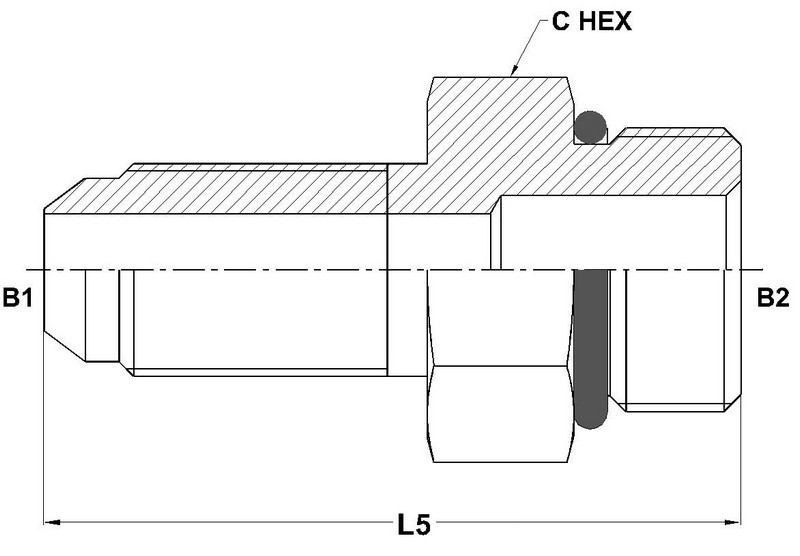

6400-L-O Series SAE# 070122 / MS# 51526
| PART NO.SIZE |
TUBE O.D. |
B1 SAE 37 |
B2 SAE ORB |
B1 DRILL |
B2 DRILL |
L6 LGTH |
C4 HEX |
| 6400-L-04-04-O |
1/4 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
2.08 |
0.562 |
| 6400-L-05-05-O |
5/16 |
1/2-20 |
1/2-20 |
0.234 |
0.234 |
2.14 |
0.625 |
| 6400-L-06-06-O |
3/8 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
2.31 |
0.688 |
| 6400-L-06-08-O |
3/8 |
9/16-18 |
3/4-16 |
0.297 |
0.391 |
2.60 |
0.875 |
| 6400-L-08-06-O |
1/2 |
3/4-16 |
9/16-18 |
0.391 |
0.297 |
2.66 |
0.875 |
| 6400-L-08-08-O |
1/2 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
2.70 |
0.875 |
| 6400-L-08-10-O |
1/2 |
3/4-16 |
7/8-14 |
0.391 |
0.484 |
2.94 |
1.000 |
| 6400-L-10-10-O |
5/8 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
3.04 |
1.000 |
| 6400-L-10-16-O |
5/8 |
7/8-14 |
1-5/16-12 |
0.484 |
0.844 |
3.83 |
1.500 |
| 6400-L-12-08-O |
3/4 |
1-1/16-12 |
3/4-16 |
0.609 |
0.391 |
3.46 |
1.125 |
| 6400-L-12-10-O |
3/4 |
1-1/16-12 |
7/8-14 |
0.609 |
0.484 |
3.52 |
1.125 |
| 6400-L-12-12-O |
3/4 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
3.61 |
1.250 |
| 6400-L-12-16-O |
3/4 |
1-1/16-12 |
1-5/16-12 |
0.609 |
0.844 |
3.93 |
1.500 |
| 6400-L-14-14-O |
7/8 |
1-3/16-12 |
1-3/16-12 |
0.719 |
0.719 |
3.80 |
1.375 |
| 6400-L-16-16-O |
1 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.844 |
3.98 |
1.500 |
| 6400-L-20-20-O |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1.078 |
1.078 |
4.69 |
1.875 |
| 6400-L-24-24-O |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1.312 |
1.312 |
5.17 |
2.125 |
