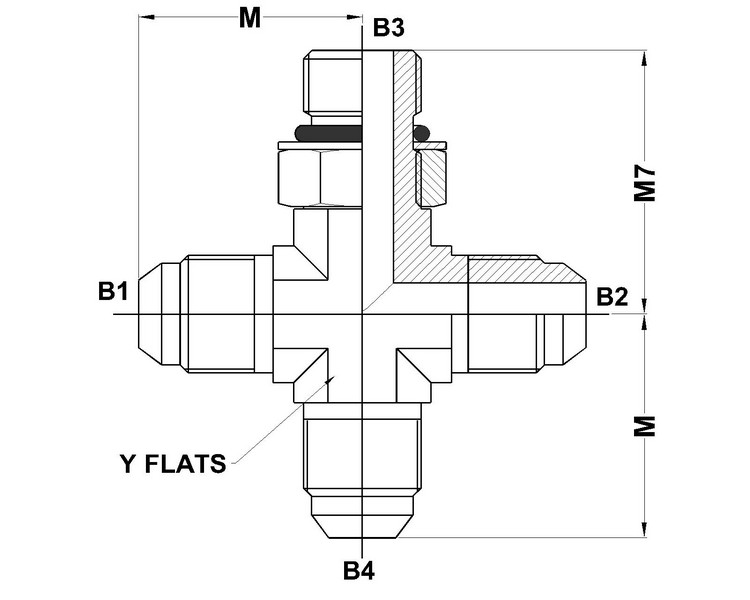

| PART NO.SIZE | TUBE O.D. | B1 SAE 37 | B2 SAE 37 | B3 SAE ORB | B4 SAE 37 | B1 DRILL | B2 DRILL | B3 DRILL | B4 DRILL | M7 LGTH | M LGTH | C HEX | Y FLATS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6850-06-06-04-06-NWO-FG | 3/8 | 9/16-18 | 9/16-18 | 7/16-20 | 9/16-18 | 0.297 | 0.297 | 0.172 | 0.297 | 1.19 | 1.06 | 0.562 | 0.562 |
| 6850-06-06-06-06-NWO-FG | 3/8 | 9/16-18 | 9/16-18 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 0.297 | 0.297 | 1.25 | 1.06 | 0.688 | 0.562 |
