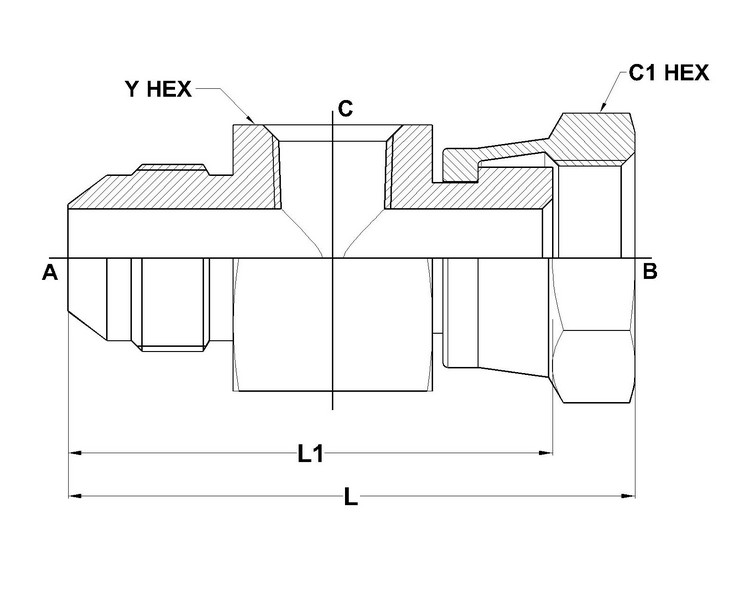

6574 Series
| PART NO.SIZE |
TUBE O.D. |
A SAE 37 |
B SAE 37 |
C NPTF |
A DRILL |
B DRILL |
L1 LGTH |
L LGTH |
C1 HEX |
Y HEX |
| 6574-04-04-04 |
1/4 |
7/16-20 |
7/16-20 |
1/4-18 |
0.172 |
0.172 |
1.70 |
2.05 |
0.563 |
1.250 |
| 6574-06-06-04 |
3/8 |
9/16-18 |
9/16-18 |
1/4-18 |
0.297 |
0.297 |
1.78 |
2.16 |
0.688 |
1.250 |
| 6574-08-08-04 |
1/2 |
3/4-16 |
3/4-16 |
1/4-18 |
0.391 |
0.391 |
1.93 |
2.36 |
0.875 |
1.250 |
| 6574-10-10-04 |
5/8 |
7/8-14 |
7/8-14 |
1/4-18 |
0.484 |
0.484 |
2.07 |
2.57 |
1.000 |
1.250 |
| 6574-12-12-04 |
3/4 |
1-1/16-12 |
1-1/16-12 |
1/4-18 |
0.609 |
0.609 |
2.20 |
2.77 |
1.250 |
1.250 |
| 6574-16-16-04 |
1 |
1-5/16-12 |
1-5/16-12 |
1/4-18 |
0.844 |
0.844 |
2.31 |
2.91 |
1.500 |
1.500 |
| 6574-20-20-04 |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1/4-18 |
1.078 |
1.078 |
2.39 |
3.03 |
2.000 |
1.750 |
| 6574-24-24-04 |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1/4-18 |
1.312 |
1.312 |
2.62 |
3.34 |
2.250 |
2.125 |
