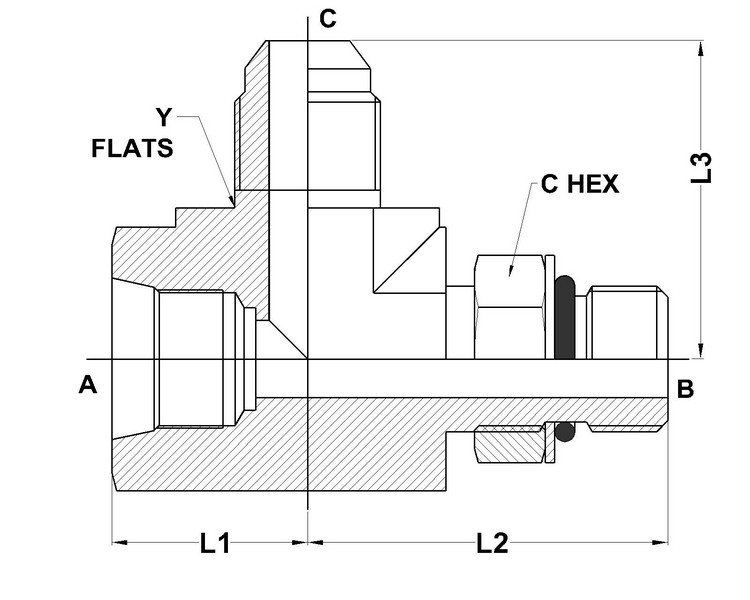

| PART NO.SIZE | TUBE O.D. | A SAE ORB | B SAE ORB | C JIC 37 | B DRILL | C DRILL | L1 LGTH | L2 LGTH | L3 LGTH | C HEX | Y FLATS |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6820-06-06-06-NWO-FG | 3/8 | 9/16-18 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 0.75 | 1.38 | 1.22 | 0.688 | 0.875 |
| 6820-06-12-12-NWO-FG | 3/4 | 9/16-18 | 1-1/16-12 | 1-1/16-12 | 0.609 | 0.609 | 1.21 | 1.94 | 1.66 | 1.250 | 1.062 |
