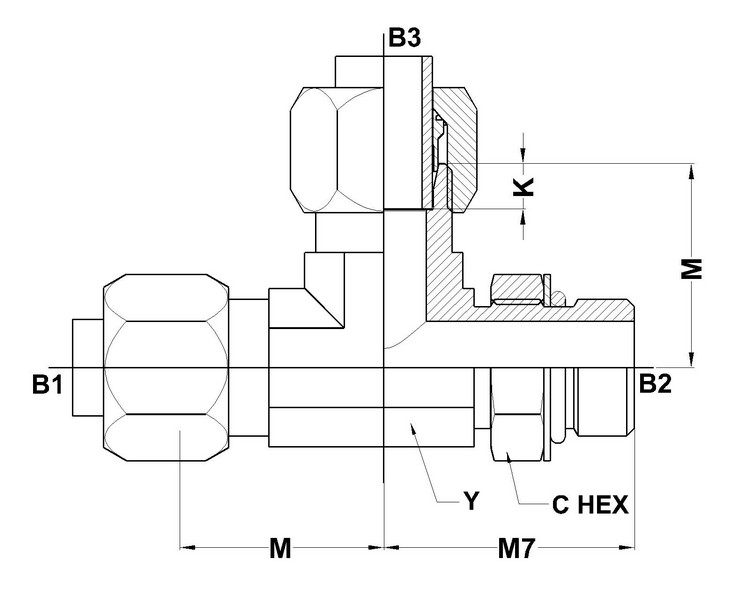

C6804-NWO Series SAE# 080428 / MS# 51892
| PART NO.SIZE |
TUBE O.D. |
B1 THREAD |
B2 THREAD |
B3 THREAD |
B1 DRILL |
B2 DRILL |
B3 DRILL |
K DEPTH |
M LGTH |
M7 LGTH |
C HEX |
Y FLATS |
| C6804-04-04-04-NWO-FG |
1/4 |
7/16-20 |
7/16-20 |
7/16-20 |
0.203 |
0.203 |
0.203 |
0.234 |
0.89 |
1.03 |
0.562 |
0.438 |
| C6804-06-06-06-NWO-FG |
3/8 |
9/16-18 |
9/16-18 |
9/16-18 |
0.281 |
0.281 |
0.281 |
0.250 |
1.05 |
1.25 |
0.688 |
0.562 |
| C6804-08-08-08-NWO-FG |
1/2 |
3/4-16 |
3/4-16 |
3/4-16 |
0.422 |
0.422 |
0.422 |
0.305 |
1.25 |
1.45 |
0.875 |
0.750 |
| C6804-10-10-10-NWO-FG |
5/8 |
7/8-14 |
7/8-14 |
7/8-14 |
0.500 |
0.500 |
0.500 |
0.350 |
1.42 |
1.70 |
1.000 |
0.875 |
| C6804-12-12-12-NWO-FG |
3/4 |
1-1/16-12 |
1-1/16-12 |
1-1/16-12 |
0.656 |
0.656 |
0.656 |
0.350 |
1.58 |
1.94 |
1.250 |
1.062 |
| C6804-16-16-16-NWO-FG |
1 |
1-5/16-12 |
1-5/16-12 |
1-5/16-12 |
0.875 |
0.875 |
0.875 |
0.415 |
1.73 |
2.05 |
1.500 |
1.312 |
