MJ-FJS 90Â°

Tube Fittings & Adapters

6500-L Series

MJ-FJS 90Â°

Enquiry

Download PDF

6500-L Series

Show entries

Search:

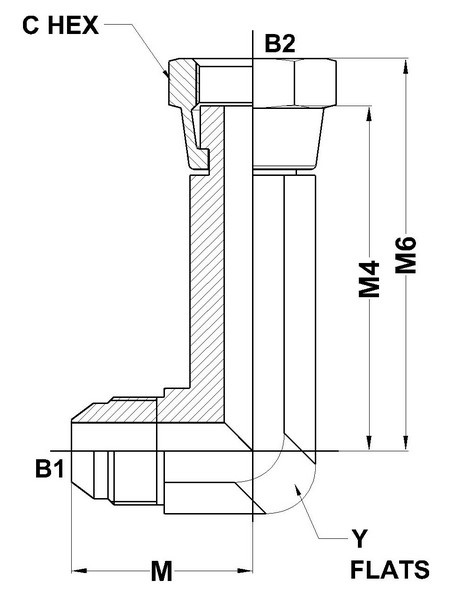

PART NO.SIZE	TUBE O.D.	B1 SAE 37	B2 SAE 37	B1 DRILL	B2 DRILL	M LGTH	M4 LGTH	M6 LGTH	C HEX	Y FLATS
6500-L-04-04-FG	1/4	7/16-20	7/16-20	0.172	0.172	0.89	1.81	2.16	0.562	0.438
6500-L-06-06-FG	3/8	9/16-18	9/16-18	0.297	0.297	1.06	2.16	2.54	0.688	0.562
6500-L-08-08-FG	1/2	3/4-16	3/4-16	0.391	0.391	1.25	2.38	2.81	0.875	0.750
6500-L-10-10-FG	5/8	7/8-14	7/8-14	0.484	0.484	1.45	2.57	3.07	1.000	0.875
6500-L-12-12-FG	3/4	1-1/16-12	1-1/16-12	0.609	0.609	1.66	3.73	4.30	1.250	1.062
6500-L-16-16-FG	1	1-5/16-12	1-5/16-12	0.844	0.844	1.81	4.40	5.00	1.500	1.312

Showing 1 to 6 of 6 entries
