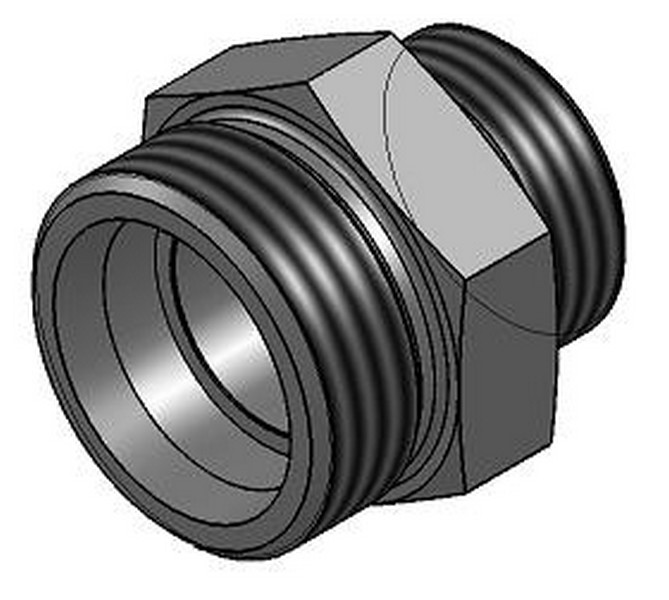

GR - STRAIGHT REDUCER
Home
Products
GR - STRAIGHT REDUCER
Enquiry
Download PDF
GR
Show
10
25
50
100
entries
Search:
Part No.
Series
Tube OD D1
Tube OD D2
l1
S1
S2
S3
Part No.
Series
Tube OD D1
Tube OD D2
l1
S1
S2
S3
GR 08/06 L
Light-250 Bar
8
6
11
14
14
17
GR 08/06 S
Heavy-630 Bar
8
6
18
17
17
19
GR 10/06 L
Light-250 Bar
10
6
12
17
14
19
GR 10/06 S
Heavy-630 Bar
10
6
17.5
19
17
22
GR 10/08 L
Light-250 Bar
10
8
12
17
17
19
GR 10/08 S
Heavy-630 Bar
10
8
17.5
19
19
22
GR 12/06 L
Light-250 Bar
12
6
13
19
14
22
GR 12/06 S
Heavy-630 Bar
12
6
19.5
22
17
24
GR 12/08 L
Light-250 Bar
12
8
13
19
17
22
GR 12/08 S
Heavy-630 Bar
12
8
19.5
22
19
24
Showing 1 to 10 of 36 entries
Previous
1
2
3
4
Next

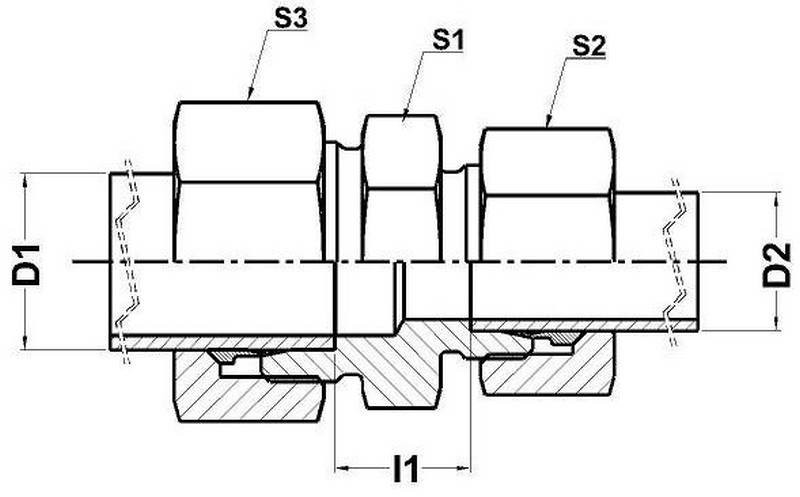

Dimensions given approx. Fig. with tightened nut. Part No. Given referes to complete assembly - Steel Part
