BT-BT-BT-BT Cross

Flareless Bite Type Fittings

C2650 Series

BT-BT-BT-BT Cross

Enquiry

Download PDF

C2650 Series SAE# 080501 / MS#51894

Show entries

Search:

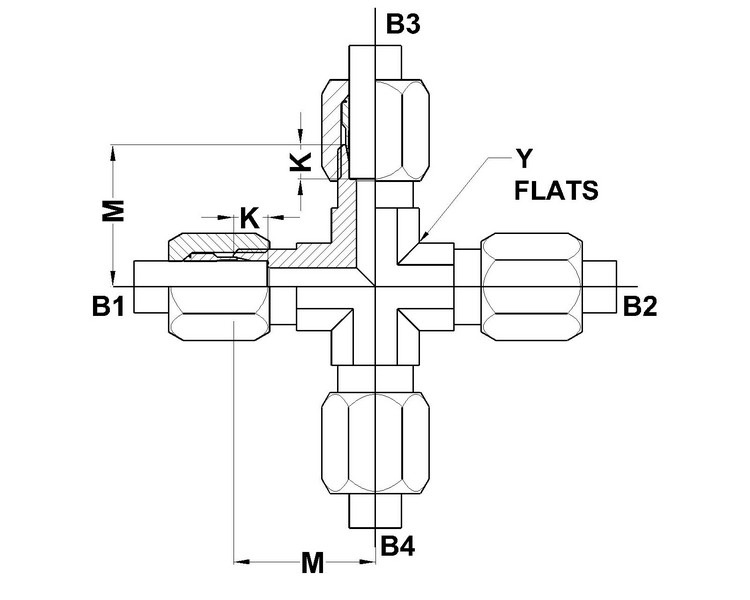

PART NO. SIZE	TUBE O.D.	B1 THREAD	B2 THREAD	B3 THREAD	B4 THREAD	B1 DRILL	M LGTH	K DEPTH	Y FLATS
C2650-04-04-04-04-FG	1/4	7/16-20	7/16-20	7/16-20	7/16-20	0.203	0.89	0.234	0.438
C2650-06-06-06-06-FG	3/8	9/16-18	9/16-18	9/16-18	9/16-18	0.281	1.05	0.250	0.562
C2650-08-08-08-08-FG	1/2	3/4-16	3/4-16	3/4-16	3/4-16	0.422	1.25	0.305	0.750
C2650-10-10-10-10-FG	5/8	7/8-14	7/8-14	7/8-14	7/8-14	0.500	1.42	0.350	0.875
C2650-16-16-16-16-FG	1	1-5/16-12	1-5/16-12	1-5/16-12	1-5/16-12	0.875	1.73	0.415	1.312
C2650-20-20-20-20-FG	1-1/4	1-5/8-12	1-5/8-12	1-5/8-12	1-5/8-12	1.093	1.89	0.415	1.625
C2650-24-24-24-24-FG	1-1/2	1-7/8-12	1-7/8-12	1-7/8-12	1-7/8-12	1.344	2.02	0.485	1.875
C2650-32-32-32-32-FG	2	2-1/2-12	2-1/2-12	2-1/2-12	2-1/2-12	1.813	2.45	0.485	2.500

Showing 1 to 8 of 8 entries
